Zelij Digital Jacquard

Algorithmic translation of traditional Moroccan geometric patterns into machine-knitted jacquard fabric.

What I built: A computational pipeline to convert binary patterns into double-bed jacquard knit structures.
Why it matters: Bridges heritage craft with digital fabrication, enabling rapid translation of complex geometries.
Proof: Successfully fabricated reversible jacquard textiles on Shima Seiki industrial machines.

Problem / Goal

Zelij (زليج) refers to the intricate geometric tilework that has defined Moroccan architecture for centuries. These patterns—often featuring tessellating stars and polygons—embody a sophisticated mathematical design language.

The goal of this project was to translate these traditional patterns into contemporary digital fabrication. The core challenge was maintaining pattern fidelity while translating high-resolution geometric designs into the discrete, physical constraints of industrial knitting (mapping pixels to stitches across two needle beds).

My Contribution

I developed the end-to-end computational pipeline (chamomile.js) that parses binary pattern images and generates low-level machine instructions (Knitout). I also managed the material fabrication on Shima Seiki machines, iterating on tension and carrier settings to achieve a stable double-jacquard structure.

Technical Approach

1. Pattern Processing

The workflow begins with selecting a tiling zelij motif (e.g., an eight-pointed star). The pattern is algorithmically multiplied to create a seamless repeat and formatted as a binary (2-color) PNG map, where pixel dimensions directly correspond to fabric stitches and courses.

Original zelij tile pattern — Source zelij tile motif

Multiplied binary pattern — Binarized pattern map

2. Pixel-to-Stitch Algorithm

I wrote a custom JavaScript tool to process the image data. The algorithm performs a serpentine traversal (zigzag) of the image pixels and issues knit commands.

Crucially, it implements Double Jacquard logic: for every pixel row, the machine makes two passes (one for the backing color, one for the pattern color), ensuring a reversible fabric with no long floats.

// Example of color mapping logic
function do_carrier(carrier, character) {
    if (side[carrier] === '+') {
        // Knit Left
        for (let i = max; i >= min; i -= 1) {
            if (color_choice[i-min] === character) {
                console.log(`knit - f${i} ${carrier}`);
            } else {
                console.log(`knit - b${i} ${carrier}`);
            }
        }
        side[carrier] = '-';
    } else {
        // Knit Right (logic mirrored)
        // ...
    }
}

3. Knitout & Visualization

The script outputs Knitout code, a machine-agnostic knitting language. I verified these instructions using a visualizer to check for dropped stitches or carrier collision issues before physical fabrication.

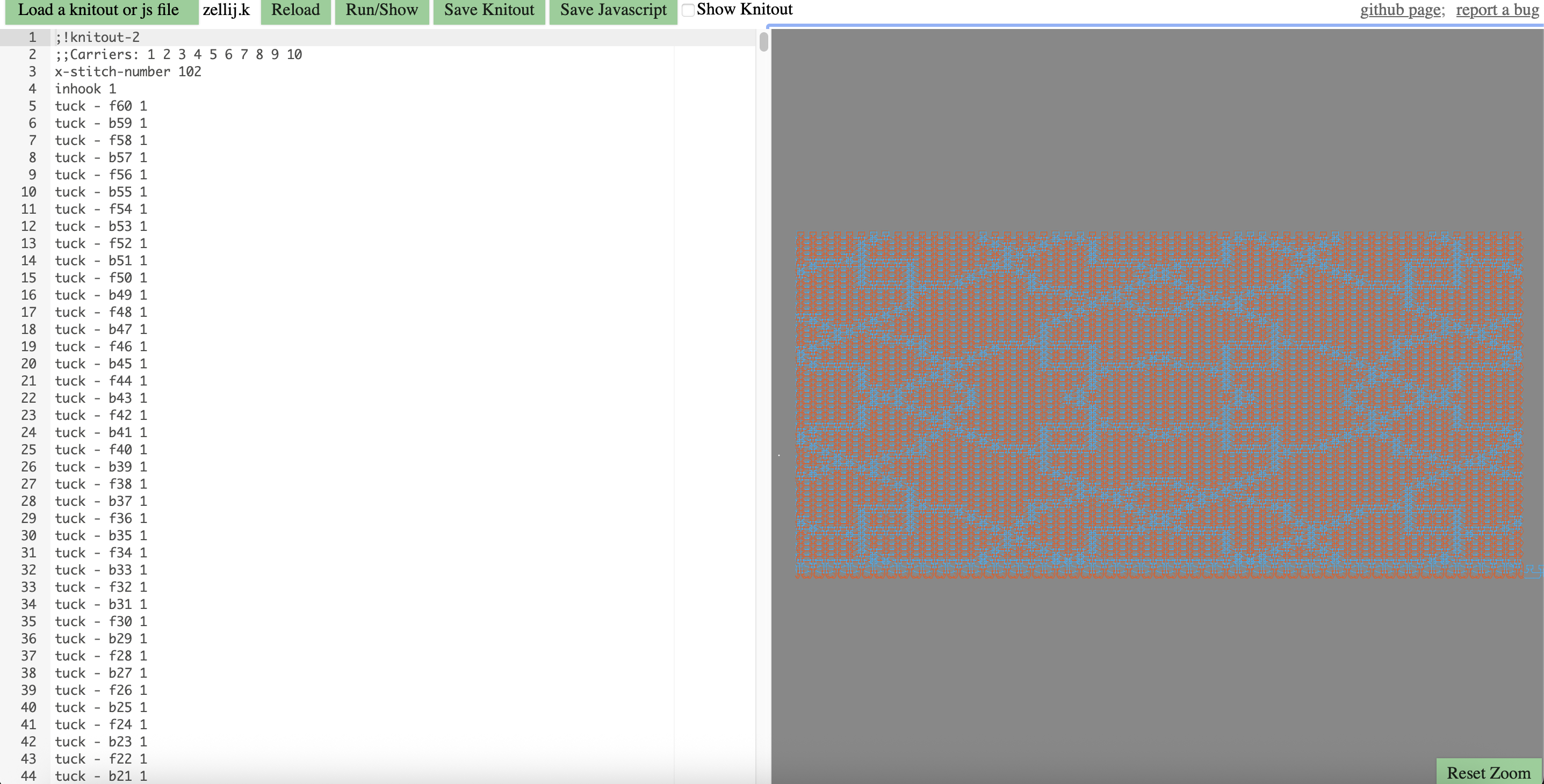

Knitout visualizer preview — Knitout visualization showing front/back bed stitch assignments.

Validation / Results

The pipeline was validated by producing physical textile artifacts. The resulting fabric exhibits high pattern fidelity with crisp geometric lines. The double-bed structure provides stability and thickness suitable for upholstery or soft goods.

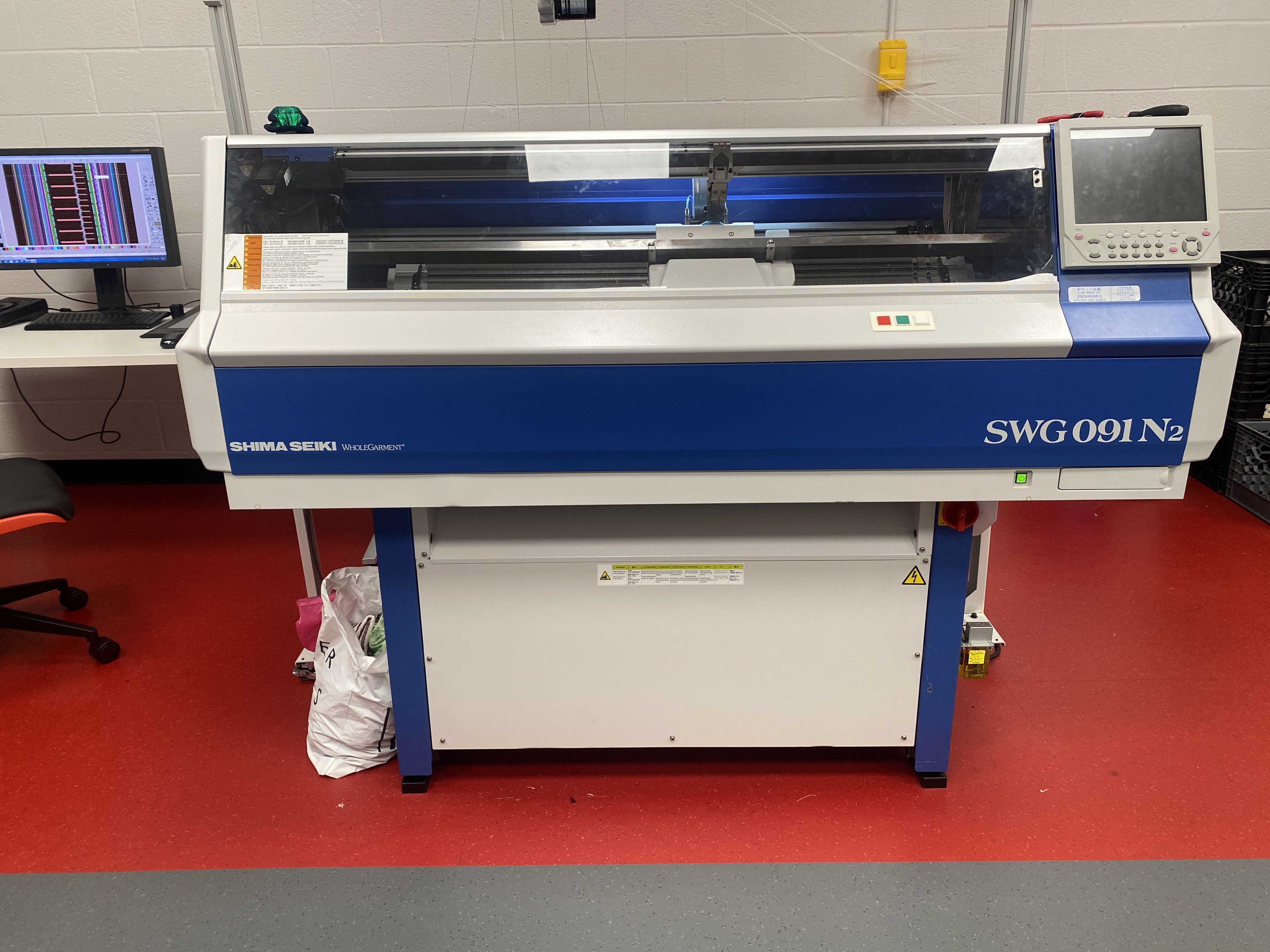

Shima Seiki machine in operation — Shima Seiki machine fabricating the jacquard.

Final fabric detail — Final fabric showing reversible jacquard structure.

Lessons + Next Steps

Key Insight: Serpentine traversal (zigzag knitting) significantly reduced carriage travel time compared to unidirectional knitting, optimizing production speed.

Next Steps: The current system is limited to 2-color binary patterns. Future work will extend the algorithm to support 3+ color jacquard using multiple yarn carriers and dithering techniques for gradients.

Links

Code/Repository available upon request.
